The best Astrographs in the market asks for the best camera in the market.
Telescopi Italiani suggest to use Moravian Instruments camera systems as the best solution in terms of electronic, mechanic, after sale support, quality/price ratio.
We can offer complete solutions, with tested and verified adapters and setup, with Moravian Instrument main imaging camera and guiding camera too.
| Table to choose the camera for a TI45 f/3.5 | ||||||
|---|---|---|---|---|---|---|
| TI45 f/3.5 | Aperture Diameter: 450 mm | Focal length: 1.575 mm | ||||
| Camera C5 |  | Pixel | Sensor Size (mm) | Diagonal (mm) | Resolution ("/pixel) | Field of view (') |
| Sensor (pixel: 3,76 micron) | IMX461 | 11.664 x 8.750 | 43,86 x 32,90 | 54,83 | 0,49 | 95,73 x 71,81 |
| IMX411 | 14.208 x 10.656 | 53,42 x 40,07 | 66,78 | 0,49 | 116,60 x 87,45 | |
| Camera C3 |  | Pixel | Sensor Size (mm) | Diagonal (mm) | Resolution ("/pixel) | Field of view (') |
| Sensor (pixel: 3,76 micron) | IMX571 | 6.252 x 4.176 | 23,51 x 15,70 | 28,27 | 0,49 | 51,31 x 34,27 |
| IMX455 | 9.576 x 6.388 | 36,01 x 24,02 | 43,29 | 0,49 | 78,59 x 52,43 | |
| Table to choose the camera for a TI55 f/3.5 | ||||||
|---|---|---|---|---|---|---|
| TI55 f/3.5 | Aperture Diameter: 550 mm | Focal length: 1.925 mm | ||||
| Camera C5 | | Pixel | Sensor Size (mm) | Diagonal (mm) | Resolution ("/pixel) | Field of view (') |
| Sensor (pixel: 3,76 micron) | IMX461 | 11.664 x 8.750 | 43,86 x 32,90 | 54,83 | 0,40 | 78,32 x 58,75 |
| IMX411 | 14.208 x 10.656 | 53,42 x 40,07 | 66,78 | 0,40 | 95,40 x 71,55 | |
| Camera C3 | | Pixel | Sensor Size (mm) | Diagonal (mm) | Resolution ("/pixel) | Field of view (') |
| Sensor (pixel: 3,76 micron) | IMX571 | 6.252 x 4.176 | 23,51 x 15,70 | 28,27 | 0,40 | 41,98 x 28,04 |
| IMX455 | 9.576 x 6.388 | 36,01 x 24,02 | 43,29 | 0,40 | 64,30 x 42,89 | |

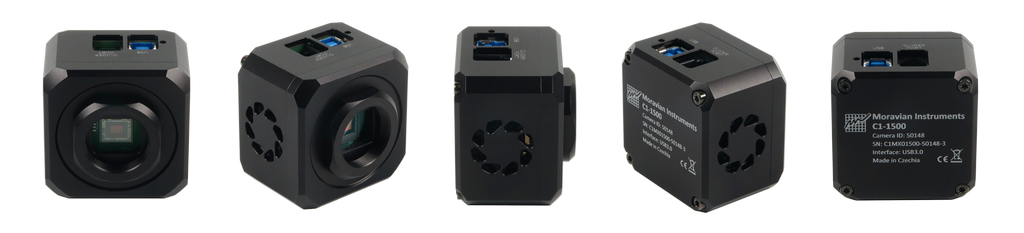

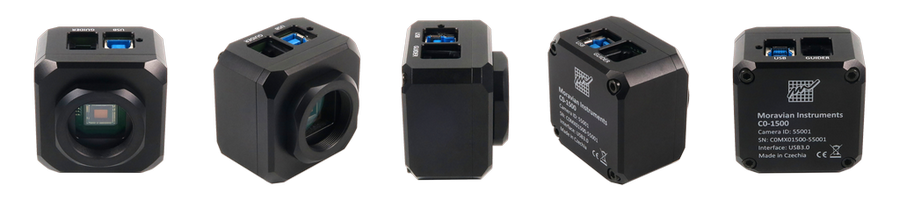

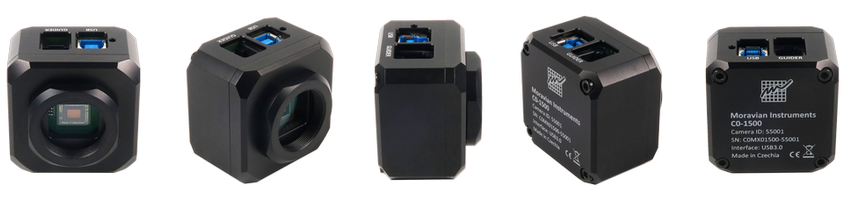

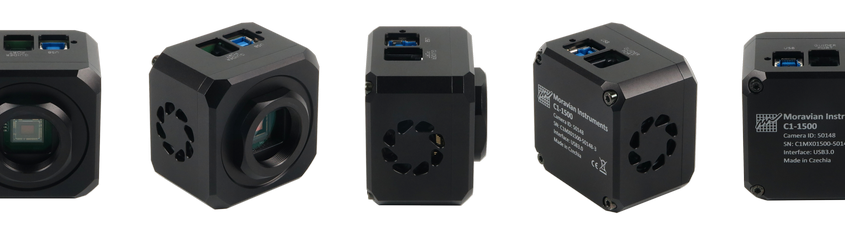

Telescopi Italiani suggest to use Moravian Instruments also for High End guide Camera C0 and C1 model.
